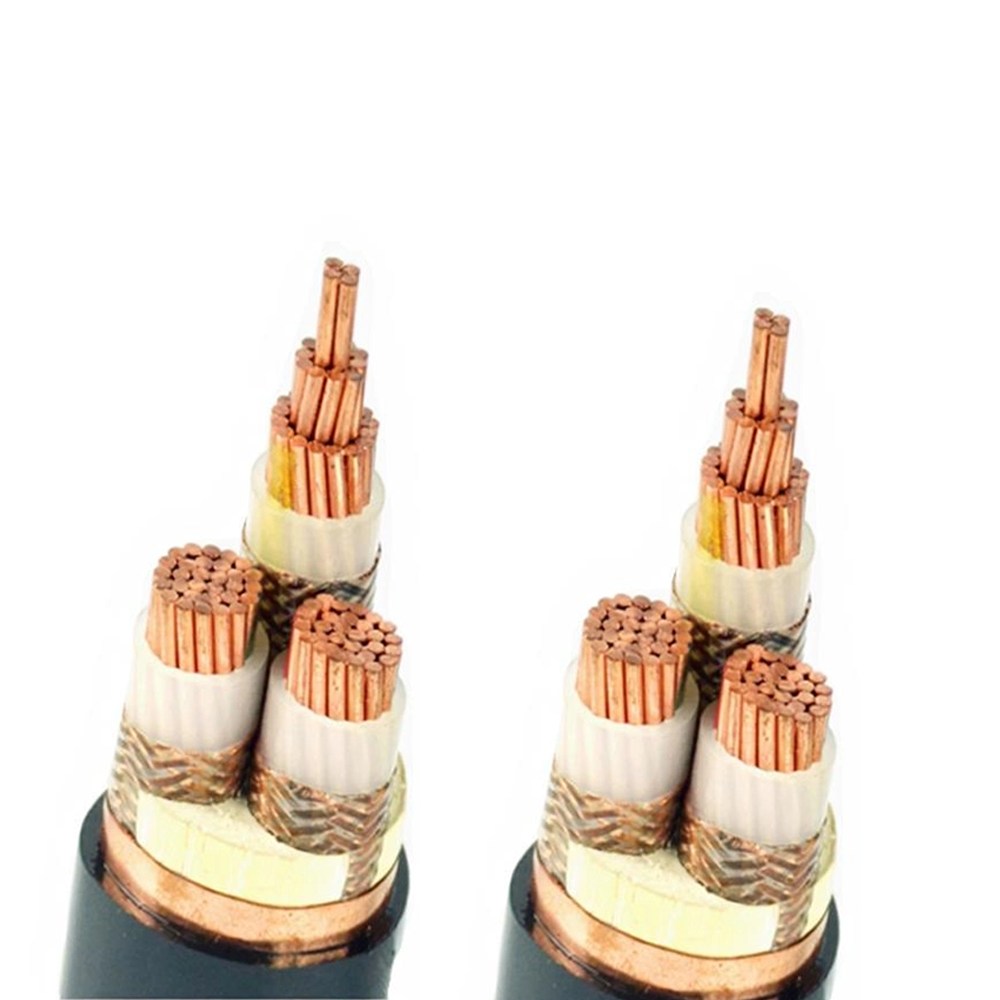

WDZB1N-YJY33 XLPE Insulated et circumfusa Power Cable

Name: WDZB1N-YJY33 XLPE Insulated et circumfusa Power Cable
Rating: 5 (99 reviews)

Quattuor in unum ultima tutela:
Ignis Repugnantia (N): Vita Salutis Assurance. Virtus continuum copiam praestat ad facultates nucleorum ignis praesidio facilities ut attollentium incendia, fumus fans exhaurit, subitis accendendi, et systemata per ignem terrorem.
Top-tier Flamma Retardancy (B1): defensionis Active. Maximizat ne propagationis flammae in ipso fune continens ignem localiter.
Environmental Salutis (WD): Evacuatio Assurance. Halogen acidorum vapores toxici nullum emittit et minimum fumum in combustione producit, clarum ambitum efficiens ad personas evacuationis et accessum firepugnatoris.
Tutela distrahens Mechanicam (33): Structural Assurance. Ferrum filum armaturae plenum pondus fune in super alta surgunt spicula et tensionem institutionem sustinere potest, ut stabilitatem corporis structuralem obtineat..

Request Quote Contact Us

Productum Details
Morbi condimentum

Product Details

Designed for the Most Extreme Scenarios:
Consilium philosophiae est, ut etiam in vehementissimis ignibus scapo, hic funis pergere possit ad systema pugnandi et evacuationis horarum, dum suo pondere ferat, potestatem praebere.
In pretium euismod turpis,
Summe Pretium Maximum: Materiae (taenia speculativa, polyolefina propria, filum chalybeum) et processus sunt maxime implicati, eamque pretiosissimam fune per unitatem pretio mercatus, sine exceptione, faciunt.
Apicem instruitur difficultas: Magnae diametri exterioris, gravissimum pondus, et rigiditas altae institutionem verticalem faciunt, inflexionem et provocationes significantes figentes, summo ordine professionales iunctiones et instrumenta specialia requirentes.
Insigniter Reducitur Current Capacitas gerendi: Ob scelerisque velit accumsan ignium resistentium, eius capacitas actualis vena-portandi circiter 20%-30% inferior est quam funiculorum ordinariorum eiusdem sectionis crucis. Stricta correctio adhibenda est in consilio et delectu, saepe sectione transversali maior necessaria.
Applicationem Scopi:
Usus ad ambitus "vitalis in vitali" mandatus a supremis ordinibus ignis nationalis salutis normae, ut ignis maxime criticus tutelae et casus subitis systematis in aedificiorum eximiis ortum et verticalem institutionem intra electricum spicula requirat..

Morbi condimentum

Conductor	Aes proprie destitutus. Tegenda est duplici vel multiplex stratis taeniolis adsimulantibus (vel materia minerali-insulata aequipollente) sicut iacuit ignis repugnans.
Insulation	Crux polyethylene (XLPE) longa-terminus licita temperatura operans 90°C.
Interiorem vaginam	Polyolefin (halogen-liberum).
Armatura iacuit	Armatura filum ferreum rotundum subtilissimum praebens vires axialis maxime altas distrahentes.
Exterior vaginae	Polyethylene (PE) vel polyolefin (halogen-liberum).
Rated voltage	0.6/1 kv (agnus).
Diu terminus temperatus operating	90°C (Important-Ob iacum ignium interni repugnantis insulationis, actualis longi temporis licita capacitas currentis portandi multiplicari debet per factorem notabilem correctionis, 0.7 ad 0.8 typice, quae in delectu computanda est).
Brevis circuitus temperatus	250°C (5 seconds).
Ignis resistentia perficiendi	Core. Prosequitur GB/T 19216.21 (IEC 60331-1) temptationis.
Requisita	Continua potestas suppleat saltem 90 minutarum (typice 90/180 minutarum) in flammis ad 750°C ad 950°C, et sustinebunt ictum mechanicum et imbrem aquae (designatio ut NH-IA90).
Combustionem perficientur rating	B1 gradu (GB 31247). Praeterire debet plenam stricturam probationum, incluso valore calorifico combustionis, rate emissio caloris, densitas fumi, fumi toxicitas, etc.
Halogen libero et humilis-fumus perficientur	pH ≥ 4.3, conductivity ≤ 10 μS/mm; Fumus densitas et lux transmissione occursum B1 gradus requisita.
